Overview
ESP-WROVER-KIT is an ESP32-based development board produced by Espressif.
ESP-WROVER-KIT features the following integrated components:
- ESP32-WROVER-E module
- LCD screen
- MicroSD card slot
Its another distinguishing feature is the embedded FTDI FT2232HL chip - an advanced multi-interface USB bridge. This chip enables to use JTAG for direct debugging of ESP32 through the USB interface without a separate JTAG debugger. ESP-WROVER-KIT makes development convenient, easy, and cost-effective.
Most of the ESP32 I/O pins are broken out to the board's pin headers for easy access.
Note
ESP32's GPIO16 and GPIO17 are used as chip select and clock signals for PSRAM. By default, the two GPIOs are not broken out to the board's pin headers in order to ensure reliable performance.
For more information, check ESP32-WROVER-E Datasheet [2] and ESP32 Datasheet [1].
Functionality Overview

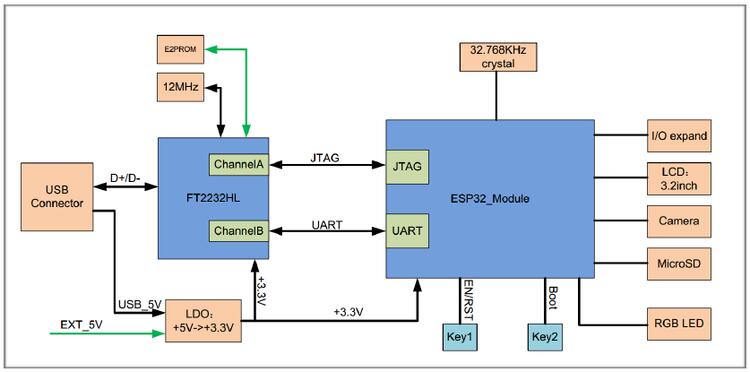

The block diagram below shows the main components of ESP-WROVER-KIT and their interconnections.
Functional Description
The following two figures and the table below describe the key components, interfaces, and controls of the ESP-WROVER-KIT board.

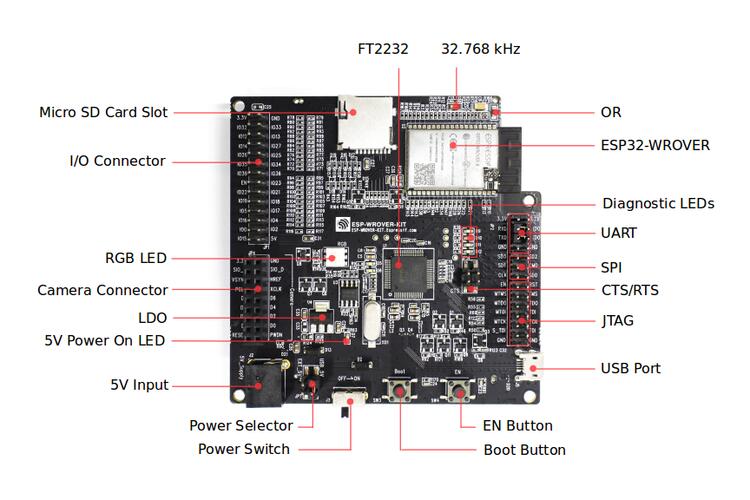

ESP-WROVER-KIT board layout - front

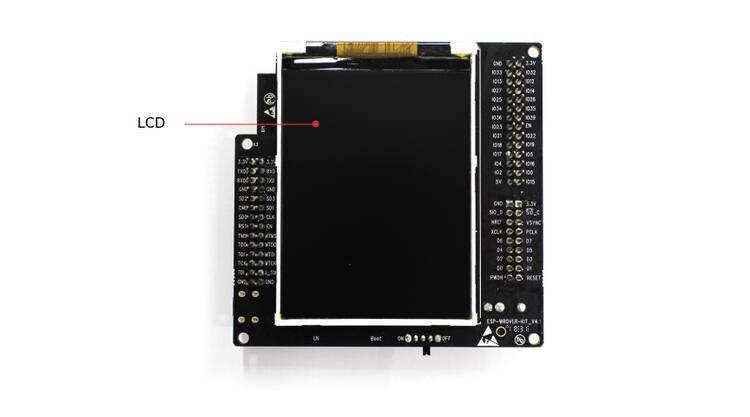

ESP-WROVER-KIT board layout - back
The table below provides description in the following manner: - Starting from the first picture's top right corner and going clockwise - Then moving on to the second picture
| Key Component | Description |
|---|---|
| FT2232 | The FT2232 chip serves as a multi-protocol USB-to-serial bridge which can be programmed and controlled via USB to provide communication with ESP32. FT2232 also features USB-to-JTAG interface which is available on channel A of the chip, while USB-to- serial is on channel B. The FT2232 chip enhances user-friendliness in terms of application development and debugging. See ESP-WROVER-KIT V4.1 schematic. |
| 32.768 kHz | External precision 32.768 kHz crystal oscillator serves as a clock with low-power consumption while the chip is in Deep-sleep mode. |
| 0R | Zero-ohm resistor intended as a placeholder for a current shunt, can be desoldered or replaced with a current shunt to facilitate the measurement of ESP32’s current consumption in different modes. |
| ESP32-WROVER-E module | This ESP32 module features 64-Mbit PSRAM for flexible extended storage and data processing capabilities. |
| Diagnostic LEDs | Four red LEDs connected to the GPIO pins of FT2232. Intended for future use. |
| UART | Serial port. The serial TX/RX signals of FT2232 and ESP32 are broken out to the inward and outward sides of JP2 respectively. By default, these pairs of pins are connected with jumpers. To use ESP32’s serial interface, remove the jumpers and connect another external serial device to the respective pins. |
| SPI | By default, ESP32 uses its SPI interface to access flash and PSRAM memory inside the module. Use these pins to connect ESP32 to another SPI device. In this case, an extra chip select (CS) signal is needed. Please note that the voltage of this interface is 3.3 V. |
| CTS/RTS | Serial port flow control signals: the pins are not connected to the circuitry by default. To enable them, short the respective pins of JP14 with jumpers. |
| JTAG | JTAG interface. JTAG signals of FT2232 and ESP32 are broken out to the inward and outward sides of JP2 respectively. By default, these pairs of pins are disconnected. To enable JTAG, short the respective pins with jumpers as shown in Section :ref:`Setup Options<setup options>` System Message: ERROR/3 (<stdin>, line 102); backlink Unknown interpreted text role "ref". |
| USB Port | USB interface. Power supply for the board as well as the communication interface between a computer and the board. |
| EN Button | Reset button. |
| BOOT Button | Download button. Holding down Boot and then pressing EN initiates Firmware Download mode for downloading firmware through the |
| Power Switch | Power On/Off Switch. Toggling toward the Boot button powers the board on, toggling away from Boot powers the board off. |
| Power Selector | Power supply selector interface. The board can be powered either via USB or via the 5V Input interface. Select the power source with a jumper. For more details, see Section Setup Options, jumper header JP7. |
| 5V input | 5V power supply interface for a standard coaxial power connector, 5.5 x 2.1 mm, center positive. This interface can be more convenient when the board is operating autonomously (not connected to a computer). |
| 5V Power On LED | This red LED turns on when power is supplied to the board, either from USB or 5V Input. |
| LDO | NCP1117(1A). 5V-to-3.3V LDO. NCP1117 can provide a maximum current of 1A. The LDO on the board has a fixed output voltage. Although, the user can install an LDO with adjustable output voltage. For details, please refer to ESP-WROVER-KIT V4.1 schematic. |
| Camera Connector | Camera interface, a standard OV7670 camera module. |
| RGB LED | Red, green and blue (RGB) light emitting diodes (LEDs), can be controlled by pulse width modulation (PWM). |
| I/O Connector | All the pins on the ESP32 module are broken out to pin headers. You can program ESP32 to enable multiple functions, such as PWM, ADC, DAC, I2C, I2S, SPI, etc. |
| MicroSD Card Slot | Useful for developing applications that access MicroSD card for data storage and retrieval. |
| LCD | Support for mounting and interfacing a 3.2” SPI (standard 4-wire Serial Peripheral Interface) LCD, as shown on figure :ref:`ESP-WROVER-KIT board layout - back<esp wrover back>` System Message: ERROR/3 (<stdin>, line 150); backlink Unknown interpreted text role "ref". |
Setup Options
There are three jumper blocks available to set up the board functionality. The most frequently required options are listed in the table below.
| Header | Jumper Setting | Description of Functionality | |||
|---|---|---|---|
| JP7 |  |
Power ESP-WROVER-KIT via an external power supply | |
| JP7 |  |
Power ESP-WROVER-KIT via USB | |
| JP2 |  |
Enable JTAG functionality | |
| JP2 |  |
Enable UART communication | |
| JP14 |  |
Enable RTS/CTS flow control for serial communication | |
Allocation of ESP32 Pins
Some pins / terminals of ESP32 are allocated for use with the onboard or external hardware. If that hardware is not used, e.g., nothing is plugged into the Camera (JP4) header, then these GPIOs can be used for other purposes.
Some of the pins, such as GPIO0 or GPIO2, have multiple functions and some of them are shared among onboard and external peripheral devices. Certain combinations of peripherals cannot work together. For example, it is not possible to do JTAG debugging of an application that is using SD card, because several pins are shared by JTAG and the SD card slot.
In other cases, peripherals can coexist under certain conditions. This is applicable to, for example, LCD screen and SD card that share only a single pin GPIO21. This pin is used to provide D/C (Data / Control) signal for the LCD as well as the Card Detect signal read from the SD card slot. If the card detect functionality is not essential, then it may be disabled by removing R167, so both LCD and SD may operate together.
For more details on which pins are shared among which peripherals, please refer to the table in the next section.
Main I/O Connector / JP1
The JP1 connector consists of 14x2 male pins whose functions are shown in the middle two “I/O” columns of the table below. The two “Shared With” columns on both sides describe where else on the board a certain GPIO is used.
| Shared With | I/O | I/O | Shared With |
|---|---|---|---|
| n/a | 3.3V | GND | n/a |
| NC/XTAL | IO32 | IO33 | NC/XTAL |
| JTAG, MicroSD | IO12 | IO13 | JTAG, MicroSD |
| JTAG, MicroSD | IO14 | IO27 | Camera |
| Camera | IO26 | IO25 | Camera, LCD |
| Camera | IO35 | IO34 | Camera |
| Camera | IO39 | IO36 | Camera |
| JTAG | EN | IO23 | Camera, LCD |
| Camera, LCD | IO22 | IO21 | Camera, LCD, MicroSD |
| Camera, LCD | IO19 | IO18 | Camera, LCD |
| Camera, LCD | IO5 | IO17 | PSRAM |
| PSRAM | IO16 | IO4 | LED, Camera, MicroSD |
| Camera, LED, Boot | IO0 | IO2 | LED, MicroSD |
| JTAG, MicroSD | IO15 | 5V |
Legend:
- NC/XTAL - 32.768 kHz Oscillator
- JTAG - JTAG / JP2
- Boot - Boot button / SW2
- Camera - Camera / JP4
- LED - RGB LED
- MicroSD - MicroSD Card / J4
- LCD - LCD / U5
- PSRAM - ESP32-WROVER-E's PSRAM
32.768 kHz Oscillator
| . | ESP32 Pin |
|---|---|
| 1 | GPIO32 |
| 2 | GPIO33 |
Note
Since GPIO32 and GPIO33 are connected to the oscillator by default, they are not connected to the JP1 I/O connector to maintain signal integrity. This allocation may be changed from the oscillator to JP1 by desoldering the zero-ohm resistors from positions R11 / R23 and re-soldering them to positions R12 / R24.
SPI Flash / JP2
| . | ESP32 Pin |
|---|---|
| 1 | CLK / GPIO6 |
| 2 | SD0 / GPIO7 |
| 3 | SD1 / GPIO8 |
| 4 | SD2 / GPIO9 |
| 5 | SD3 / GPIO10 |
| 6 | CDM / GPIO11 |
Important
The module's flash bus is connected to the jumper block JP2 through zero-ohm resistors R140 ~ R145. If the flash memory needs to operate at the frequency of 80 MHz, for reasons such as improving the integrity of bus signals, you can desolder these resistors to disconnect the module's flash bus from the pin header JP2.
JTAG / JP2
| . | ESP32 Pin | JTAG Signal |
|---|---|---|
| 1 | EN | TRST_N |
| 2 | MTMS / GPIO14 | TMS |
| 3 | MTDO / GPIO15 | TDO |
| 4 | MTDI / GPIO12 | TDI |
| 5 | MTCK / GPIO13 | TCK |
Camera / JP4
| . | ESP32 Pin | Camera Signal |
|---|---|---|
| 1 | n/a | 3.3V |
| 2 | n/a | Ground |
| 3 | GPIO27 | SIO_C / SCCB Clock |
| 4 | GPIO26 | SIO_D / SCCB Data |
| 5 | GPIO25 | VSYNC / Vertical Sync |
| 6 | GPIO23 | HREF / Horizontal Reference |
| 7 | GPIO22 | PCLK / Pixel Clock |
| 8 | GPIO21 | XCLK / System Clock |
| 9 | GPIO35 | D7 / Pixel Data Bit 7 |
| 10 | GPIO34 | D6 / Pixel Data Bit 6 |
| 11 | GPIO39 | D5 / Pixel Data Bit 5 |
| 12 | GPIO36 | D4 / Pixel Data Bit 4 |
| 13 | GPIO19 | D3 / Pixel Data Bit 3 |
| 14 | GPIO18 | D2 / Pixel Data Bit 2 |
| 15 | GPIO5 | D1 / Pixel Data Bit 1 |
| 16 | GPIO4 | D0 / Pixel Data Bit 0 |
| 17 | GPIO0 | RESET / Camera Reset |
| 18 | n/a | PWDN / Camera Power Down |
- Signals D0 .. D7 denote camera data bus
RGB LED
| . | ESP32 Pin | RGB LED |
|---|---|---|
| 1 | GPIO0 | Red |
| 2 | GPIO2 | Green |
| 3 | GPIO4 | Blue |
MicroSD Card
| . | ESP32 Pin | MicroSD Signal |
|---|---|---|
| 1 | MTDI / GPIO12 | DATA2 |
| 2 | MTCK / GPIO13 | CD / DATA3 |
| 3 | MTDO / GPIO15 | CMD |
| 4 | MTMS / GPIO14 | CLK |
| 5 | GPIO2 | DATA0 |
| 6 | GPIO4 | DATA1 |
| 7 | GPIO21 | Card Detect |
LCD / U5
| . | ESP32 Pin | LCD Signal |
|---|---|---|
| 1 | GPIO18 | RESET |
| 2 | GPIO19 | SCL |
| 3 | GPIO21 | D/C |
| 4 | GPIO22 | CS |
| 5 | GPIO23 | SDA |
| 6 | GPIO25 | SDO |
| 7 | GPIO5 | Backlight |
Start Application Development
Before powering up your ESP-WROVER-KIT, please make sure that the board is in good condition with no obvious signs of damage.
Initial Setup
Please set only the following jumpers shown in the pictures below:
- Select USB as the power source using the jumper block JP7.
- Enable UART communication using the jumper block JP2.
| Power up from USB port | Enable UART communication | |
|---|---|---|
|
|
|
Do not install any other jumpers.
Turn the Power Switch to ON, the 5V Power On LED should light up.
Supported Features
System Message: ERROR/3 (<stdin>, line 444)
Unknown directive type "zephyr:board-supported-hw".
.. zephyr:board-supported-hw::
System requirements
Prerequisites
Espressif HAL requires WiFi and Bluetooth binary blobs in order work. Run the command below to retrieve those files.
System Message: WARNING/2 (<stdin>, line 455)
Cannot analyze code. Pygments package not found.
.. code-block:: console west blobs fetch hal_espressif
Note
It is recommended running the command above after :file:`west update`.
System Message: ERROR/3 (<stdin>, line 461); backlink
Unknown interpreted text role "file".Building & Flashing
System Message: ERROR/3 (<stdin>, line 466)
Unknown directive type "zephyr:board-supported-runners".
.. zephyr:board-supported-runners::
Simple boot
The board could be loaded using the single binary image, without 2nd stage bootloader. It is the default option when building the application without additional configuration.
Note
Simple boot does not provide any security features nor OTA updates.
MCUboot bootloader
User may choose to use MCUboot bootloader instead. In that case the bootloader must be built (and flashed) at least once.
There are two options to be used when building an application:
- Sysbuild
- Manual build
Note
User can select the MCUboot bootloader by adding the following line to the board default configuration file.
System Message: WARNING/2 (<stdin>, line 494)
Cannot analyze code. Pygments package not found.
.. code:: cfg CONFIG_BOOTLOADER_MCUBOOT=y
Sysbuild
The sysbuild makes possible to build and flash all necessary images needed to bootstrap the board with the ESP32 SoC.
To build the sample application using sysbuild use the command:
System Message: ERROR/3 (<stdin>, line 506)
Unknown directive type "zephyr-app-commands".
.. zephyr-app-commands:: :tool: west :zephyr-app: samples/hello_world :board: esp_wrover_kit :goals: build :west-args: --sysbuild :compact:
By default, the ESP32 sysbuild creates bootloader (MCUboot) and application images. But it can be configured to create other kind of images.
Build directory structure created by sysbuild is different from traditional Zephyr build. Output is structured by the domain subdirectories:
build/ ├── hello_world │ └── zephyr │ ├── zephyr.elf │ └── zephyr.bin ├── mcuboot │ └── zephyr │ ├── zephyr.elf │ └── zephyr.bin └── domains.yaml
Note
With --sysbuild option the bootloader will be re-build and re-flash every time the pristine build is used.
For more information about the system build please read the :ref:`sysbuild` documentation.
System Message: ERROR/3 (<stdin>, line 538); backlink
Unknown interpreted text role "ref".Manual build
During the development cycle, it is intended to build & flash as quickly possible. For that reason, images can be built one at a time using traditional build.
The instructions following are relevant for both manual build and sysbuild. The only difference is the structure of the build directory.
Note
Remember that bootloader (MCUboot) needs to be flash at least once.
Build and flash applications as usual (see :ref:`build_an_application` and :ref:`application_run` for more details).
System Message: ERROR/3 (<stdin>, line 553); backlink
Unknown interpreted text role "ref".System Message: ERROR/3 (<stdin>, line 553); backlink
Unknown interpreted text role "ref".System Message: ERROR/3 (<stdin>, line 556)
Unknown directive type "zephyr-app-commands".
.. zephyr-app-commands:: :zephyr-app: samples/hello_world :board: esp_wrover_kit/esp32/procpu :goals: build
The usual flash target will work with the esp_wrover_kit board configuration. Here is an example for the :zephyr:code-sample:`hello_world` application.
System Message: ERROR/3 (<stdin>, line 561); backlink
Unknown interpreted text role "zephyr:code-sample".System Message: ERROR/3 (<stdin>, line 565)
Unknown directive type "zephyr-app-commands".
.. zephyr-app-commands:: :zephyr-app: samples/hello_world :board: esp_wrover_kit/esp32/procpu :goals: flash
Open the serial monitor using the following command:
System Message: WARNING/2 (<stdin>, line 572)
Cannot analyze code. Pygments package not found.
.. code-block:: shell west espressif monitor
After the board has automatically reset and booted, you should see the following message in the monitor:
System Message: WARNING/2 (<stdin>, line 579)
Cannot analyze code. Pygments package not found.
.. code-block:: console ***** Booting Zephyr OS vx.x.x-xxx-gxxxxxxxxxxxx ***** Hello World! esp_wrover_kit
Debugging
ESP32 support on OpenOCD is available at OpenOCD ESP32 [3].
On the ESP-WROVER-KIT board, the JTAG pins are connected internally to a USB serial port on the same device as the console. These boards require no external hardware and are debuggable as-is. The JTAG signals, however, must be jumpered closed to connect the internal controller (the default is to leave them disconnected). The jumper headers are on the right side of the board as viewed from the power switch, next to similar headers for SPI and UART. See ESP-WROVER-32 V3 Getting Started Guide [4] for details.
Here is an example for building the :zephyr:code-sample:`hello_world` application.
System Message: ERROR/3 (<stdin>, line 598); backlink
Unknown interpreted text role "zephyr:code-sample".System Message: ERROR/3 (<stdin>, line 600)
Unknown directive type "zephyr-app-commands".
.. zephyr-app-commands:: :zephyr-app: samples/hello_world :board: esp_wrover_kit/esp32/procpu :goals: build flash :gen-args: -DOPENOCD=<path/to/bin/openocd> -DOPENOCD_DEFAULT_PATH=<path/to/openocd/share/openocd/scripts>
You can debug an application in the usual way. Here is an example for the :zephyr:code-sample:`hello_world` application.
System Message: ERROR/3 (<stdin>, line 606); backlink
Unknown interpreted text role "zephyr:code-sample".System Message: ERROR/3 (<stdin>, line 608)
Unknown directive type "zephyr-app-commands".
.. zephyr-app-commands:: :zephyr-app: samples/hello_world :board: esp_wrover_kit/esp32/procpu :goals: debug
References
| [1] | https://www.espressif.com/sites/default/files/documentation/esp32_datasheet_en.pdf(PDF) |
| [2] | https://www.espressif.com/sites/default/files/documentation/esp32-wrover-e_esp32-wrover-ie_datasheet_en.pdf(PDF) |
| [3] | https://github.com/espressif/openocd-esp32/releases |
| [4] | https://docs.espressif.com/projects/esp-idf/en/latest/esp32/hw-reference/esp32/get-started-wrover-kit.html |
